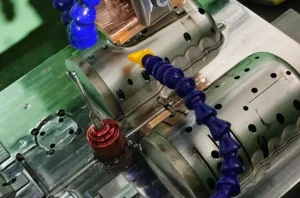

Electrical Discharge Machining (EDM) is a non-traditional machining process that removes material from electrically conductive workpieces through a series of controlled electrical discharges—commonly known as sparks.
Unlike conventional cutting methods that involve physical contact and shear forces, EDM operates through thermal energy, eroding the material precisely where each spark strikes.
This unique mechanism allows EDM to machine extremely hard metals, intricate shapes, and fine details that would be challenging or impossible to achieve through traditional methods.
Also referred to as spark machining, die sinking, or wire burning, EDM has earned a vital place in the manufacturing industry due to its ability to achieve exceptional precision, tight tolerances, and superior surface finishes.
These capabilities make it indispensable in sectors such as aerospace, medical device manufacturing, automotive engineering, tool and die making, and electronics.
The versatility of EDM is further demonstrated through its three main variants:
- Sinker EDM (Ram EDM): Utilizes a shaped electrode that is plunged into the workpiece to create complex cavities, often used in mold and die manufacturing.
- Wire EDM (Wire-Cut EDM): Employs a continuously fed, electrically charged wire to cut through material with extreme accuracy—ideal for intricate profiles and high-precision components.
- Small Hole EDM (EDM Drilling): Designed to create minute holes in hardened materials, often used for coolant passages in turbine blades or starter holes for wire EDM.
As manufacturing demands continue to evolve toward higher complexity, tighter tolerances, and harder materials, EDM stands out as a cornerstone technology in precision engineering and advanced component fabrication.
History and Evolution of EDM
Electrical Discharge Machining (EDM), a non-traditional machining method known for its ability to shape hard materials and complex geometries with remarkable precision, has a rich and transformative history that reflects major scientific discoveries, wartime innovation, and decades of technological advancement.
1770: Discovery by Joseph Priestley
The roots of EDM trace back to 1770 when British scientist Joseph Priestley first observed the erosive effects of electrical discharges on metal.
Although his work focused on the physical phenomena surrounding electric sparks and their chemical implications, it laid the conceptual foundation for what would eventually evolve into EDM.
His experiments demonstrated that metal could be eroded using electrical energy—a principle that would remain largely theoretical for over a century.
1940s: Soviet Advancements by the Lazarenkos
It wasn’t until the 1940s that EDM transitioned from scientific curiosity to practical application.
Soviet engineers Drs. B.R. and N.I. Lazarenko developed the first functional EDM process while attempting to address problems related to the erosion of tungsten electrical contacts.
Their breakthrough came with the invention of the Lazarenko circuit, a controlled method of using spark discharges to machine conductive materials. This circuit, which regulated the intensity and duration of electrical pulses between electrodes, became the foundation of modern EDM technology.
1960s–1970s: Commercialization and CNC Integration
The 1960s marked a significant turning point in EDM’s development as it entered the commercial manufacturing sector.
The emergence of transistorized power supplies and more precise spark control systems enabled wider adoption of EDM for tool and die making, mold manufacturing, and aerospace component machining.
By the 1970s, the integration of Computer Numerical Control (CNC) technology further transformed EDM, providing enhanced automation, precision, and repeatability.
CNC systems allowed for complex geometries to be machined with minimal manual intervention, significantly expanding the scope and applications of EDM in advanced manufacturing.
Development of Wire EDM, Hole Popper EDM, and Automation
Subsequent decades saw the diversification of EDM technologies into specialized variants:
Wire EDM (Electrical Discharge Wire Cutting):
Introduced in the late 1960s, wire EDM utilized a thin, continuously fed wire as the electrode to cut intricate contours in hardened materials.
This innovation made it possible to produce precise parts with narrow kerfs and high aspect ratios, ideal for aerospace, medical, and micro-manufacturing applications.
Hole Popper EDM (EDM Drilling):
This variation focused on producing small, deep holes in tough materials, particularly useful for cooling channels in turbine blades and ejector pin holes in molds.
With high-speed drilling capabilities, hole popper EDM machines became essential in high-precision industries.
Automation and Intelligent EDM Systems:
As EDM matured, it embraced automation and intelligent control systems.
Tool changers, robotic loading, real-time spark monitoring, and adaptive machining strategies enhanced both productivity and process reliability.
Modern EDM machines now feature AI-assisted parameters, hybrid machining capabilities, and integration into smart manufacturing ecosystems.
EDM Working Principle Explained
Electrical Discharge Machining (EDM) operates on a fundamentally different principle than conventional material removal methods.
As a non-contact, non-traditional machining process, EDM utilizes controlled electrical discharges—or sparks—to erode material from a conductive workpiece, enabling the creation of highly precise and complex geometries that are difficult to achieve with traditional cutting tools.
Spark Erosion Between Tool and Workpiece
At the core of EDM lies the principle of spark erosion. The process involves two electrodes:
the tool (also known as the electrode) and the workpiece, both of which must be electrically conductive. A very small gap, typically in the micrometer range, separates these electrodes.
Applying a high voltage across this gap ionizes the dielectric fluid, allowing a spark discharge to occur.
Each spark generates an intense localized heat—often exceeding 8,000 to 12,000°C—which melts and vaporizes a minute amount of material from both the tool and the workpiece.
This material is then flushed away by the dielectric fluid, leaving behind a precise cavity that matches the shape of the electrode.
Role of Dielectric Fluid
The dielectric fluid plays a vital, multifaceted role in the EDM process. Typically made of deionized water or hydrocarbon-based oils, the fluid performs the following functions:
- Cooling: It dissipates the extreme heat generated by the sparks, preventing thermal damage and maintaining the dimensional stability of the workpiece.
- Flushing: It removes eroded particles (debris) from the spark gap, which is essential to maintain machining accuracy and surface quality.
- Insulation: Before each spark, the dielectric acts as an insulator. It only becomes conductive at a specific breakdown voltage, ensuring that discharges occur in a controlled and localized manner.
Proper management of the dielectric fluid is crucial for consistent performance, tool life, and surface integrity.
Non-Contact, Non-Traditional Process
Unlike conventional machining processes—such as milling or turning—EDM does not require physical contact or cutting forces between the tool and the material.
This makes it especially well-suited for machining hard, brittle, or heat-treated materials, such as tool steels, carbides, and exotic alloys that are difficult to machine by conventional means.
Because no mechanical stresses are imposed, EDM is ideal for delicate or intricate parts where dimensional accuracy and fine finishes are critical. Furthermore, the absence of contact eliminates issues such as tool deflection or chatter.
Key Technical Parameters
The effectiveness and precision of EDM depend on the careful control of several key technical parameters, including:
- Voltage: Determines the energy available for each spark. Higher voltage increases the intensity of material removal but may affect surface finish.
- Pulse Duration (On-Time): The time for which the current is applied during each spark. Longer pulse durations lead to deeper craters and faster material removal, but at the cost of surface quality.
- Pulse Interval (Off-Time): The time between sparks, allowing debris removal and dielectric recovery.
- Spark Frequency: The number of sparks occurring per second. High frequencies can result in smoother finishes and finer detail, especially for finishing operations.
Fine-tuning these parameters is essential for optimizing machining speed, surface roughness, electrode wear, and dimensional precision.
Types of EDM Technologies
Electrical Discharge Machining (EDM) has evolved into several specialized variants, each tailored to specific industrial applications.
Understanding these distinct types is crucial for selecting the optimal method based on geometry, material, and precision requirements.
Sinker EDM (Ram EDM)
Sinker EDM—also known as plunge or cavity-type EDM—is primarily employed for producing complex, deep cavities such as those required in die and mold manufacturing.
This method utilizes shaped electrodes, typically made from graphite or copper, that are “sunk” into the workpiece to form the desired geometry through repeated electrical discharges.
This process is especially effective for:
- Hard materials like tool steels and carbides
- Geometries that are difficult or impossible to machine using traditional methods
- Applications requiring precise replication of intricate cavity details
The workpiece and electrode are submerged in a dielectric fluid, which aids in spark control, debris removal, and thermal management.
Wire EDM (Wire-Cut EDM)
Wire EDM is a high-precision EDM method that uses a continuously fed thin wire (typically brass or copper) as the electrode to cut profiles through a workpiece.
Unlike sinker EDM, wire EDM is typically reserved for 2D shapes or parts that require tight tolerances and fine finishes.
Key characteristics include:
- Capability to machine extremely hard materials, including hardened steel and superalloys
- Exceptional accuracy, often within a few microns
- Common usage in aerospace, medical device, and tool & die industries
The wire moves between upper and lower guides, with the workpiece immersed in a dielectric fluid (often deionized water). This setup allows for precise control of the cutting path, even in complex geometries.
Small Hole EDM (EDM Drilling)
Small Hole EDM, or EDM drilling, employs a rotating, hollow tubular electrode to erode small, deep holes in hard materials. This process is typically used for creating:
- Cooling holes in turbine blades
- Start holes for wire EDM processes
- Micro-features in medical and aerospace components
It excels where conventional drilling fails, such as in materials with high hardness or toughness.
The dielectric fluid is often flushed through the electrode itself, enhancing debris removal and maintaining stable machining conditions.
How Wire EDM Works: Step-by-Step
Wire Electrical Discharge Machining (Wire EDM) is a precision manufacturing process used to cut intricate contours in hard and conductive materials.
It is especially valued for its ability to produce high-tolerance parts with fine finishes.
The process relies on a sequence of well-orchestrated steps, each playing a critical role in ensuring cutting accuracy and process stability.
Threading and Tensioning the Wire
The process begins with automated threading of a thin conductive wire, typically made of brass or coated copper, through the guides and across the workpiece.
The wire is held under precise tension to maintain straightness and ensure accurate positioning during cutting.
Proper tensioning is essential to avoid deflection, vibration, or wire breakage during high-speed operations.
CNC Programming of the Cutting Path
The desired geometry is programmed using Computer Numerical Control (CNC).
Advanced CAM software converts 2D or 3D design models into toolpaths, which guide the motion of the wire. This enables precise, repeatable cutting, even for complex shapes with micron-level tolerances.
Electrical Discharges and Material Removal
Material is removed not by mechanical contact, but by rapid, controlled electrical discharges (sparks) between the wire and the workpiece.
These discharges occur in the microscopic gap between the wire and the part surface, creating localized melting and vaporization of material.
The process is non-contact, which eliminates cutting forces and allows machining of very delicate or hard parts without deformation.
Dielectric Flushing and Cooling
Throughout the process, the system submerges the wire and workpiece in a dielectric fluid, typically deionized water. This fluid plays a vital role by::
- Acting as an insulator until the spark is generated
- Flushing away eroded particles (debris)
- Cooling both the workpiece and wire to prevent thermal damage and maintain dimensional accuracy
Effective flushing ensures consistent spark generation and prevents short-circuiting.
Multi-Pass Cutting: Roughing and Skimming
Wire EDM typically involves multiple cutting passes:
- The rough cut removes the bulk of the material, focusing on speed over surface finish.
- Subsequent skimming passes refine the geometry, improve surface finish, and achieve tighter dimensional tolerances.
Each skimming pass uses lower power and finer parameters to minimize recast layers and surface irregularities.
Automatic Wire Feed and Breakage Detection
Modern Wire EDM machines are equipped with automatic wire feeding systems, enabling continuous operation even after wire breakage. Sensors detect when a break occurs, and the machine:
- Stops the cut
- Retracts the wire
- Automatically re-threads it through the guides and workpiece
- Resumes cutting at the exact interruption point
This capability significantly improves process reliability and unattended machining efficiency.
Wire EDM is a highly refined process that combines precision mechanics, electrical engineering, and fluid dynamics. Its meticulous step-by-step execution ensures exceptional results in applications where other methods fall short—making it indispensable in industries like aerospace, medical device manufacturing, and high-performance tooling.
Key Components of a Wire EDM Machine
Wire Electrical Discharge Machining (Wire EDM) is a highly specialized process, and its precision, reliability, and efficiency are enabled by a carefully engineered integration of mechanical, electrical, and fluid systems.
Each component within a Wire EDM machine plays a vital role in ensuring accurate material removal, process stability, and long-term machine performance. Below is a breakdown of the critical components and their functions:
• Wire (Brass, Copper, Tungsten, Molybdenum)
The electrode wire is the heart of the EDM process, responsible for generating the electrical discharges that erode the material. Common wire materials include:
- Brass: Widely used due to its good conductivity, affordability, and stable spark characteristics.
- Coated Copper: Offers enhanced performance for fine finish appl ications.
- Tungsten and Molybdenum: Used for specialized tasks requiring higher tensile strength or for extremely hard materials.
The choice of wire affects cutting speed, surface quality, and wear rate.
• Dielectric System (Deionized Water or Oil)
The dielectric fluid—usually deionized water in Wire EDM—serves multiple purposes:
- Acts as an electrical insulator until the voltage breaks down and a spark occurs
- Cools the wire and workpiece to prevent thermal distortion
- Flushes away microscopic debris from the cutting zone
Maintaining the correct conductivity of the fluid is essential, and it’s managed automatically within the dielectric system.
• CNC Control System and Servo Motors
The CNC (Computer Numerical Control) system governs the precise motion of the wire in multiple axes (typically X, Y, U, and V).
It interprets the programmed toolpath and coordinates complex geometry with sub-micron resolution.
High-performance servo motors drive the movement of the wire guides and work table, ensuring repeatability and dynamic responsiveness during high-speed contouring.
• Wire Guides and Flushing Nozzles
Diamond or sapphire wire guides accurately position the wire as it traverses through the workpiece.
These guides must be precisely aligned to maintain kerf width and cutting accuracy.
Flushing nozzles, positioned above and below the workpiece, deliver high-pressure dielectric fluid directly into the spark gap, which enhances debris removal and maintains process stability.
Filters, Chiller, and Power Supply
- Filters continuously clean the dielectric fluid, removing eroded particles to preserve spark integrity.
- A chiller unit regulates fluid temperature, preventing thermal expansion or distortion that could compromise dimensional accuracy.
- The power supply provides controlled electrical pulses (voltage, current, pulse duration, and frequency) to initiate and maintain spark erosion. Modern EDM machines offer programmable power settings tailored for different materials and finish requirements.
• Fixtures and Workholding
Secure and stable fixturing is critical in Wire EDM to prevent part movement and ensure consistent cutting results.
Precision workholding systems—such as vises, pallets, and clamps—are designed to hold complex geometries without interfering with the wire path or dielectric flow.
• Safety and Maintenance Systems
Manufacturers equip Wire EDM systems with the following features to ensure operator safety and machine longevity:
- Enclosures and interlocks to prevent accidental contact with moving parts or electrical components
- Automatic wire break detection and rethreading
- Real-time monitoring of fluid levels, conductivity, and filter status
- Built-in maintenance schedules and diagnostics for predictive servicing and reduced downtime
Each of these components contributes to the remarkable capabilities of Wire EDM.
By combining precision mechanics, intelligent control, and advanced material science, modern Wire EDM machines can deliver intricate, high-accuracy parts for demanding applications—making them indispensable in aerospace, medical, tool and die, and electronics manufacturing.
Types of Wire Used in EDM
The type of wire used in Wire EDM (Electrical Discharge Machining) significantly influences cutting performance, precision, surface quality, and material compatibility. Different wire materials and diameters are selected based on the application’s technical demands.
• Brass Wire: Common and Cost-Effective
Brass wire, composed mainly of copper and zinc, is the most widely used wire type in EDM. It offers good electrical conductivity and stable machining performance at a reasonable cost. Ideal for general-purpose applications, brass wire is reliable but may wear out faster under high-stress conditions.
• Coated Wire: Higher Speed and Better Surface Finish
Coated wires typically feature a brass or copper core with an outer layer of zinc or a gamma-phase alloy.
These coatings enhance cutting speed, reduce wire consumption, and produce smoother surface finishes.
Coated wires are preferred in precision-critical industries such as aerospace, mold making, and medical manufacturing.
• Tungsten and Molybdenum Wire: High-Temperature and Precision Use
Tungsten and molybdenum wires are known for their exceptional thermal resistance and rigidity.
They are suitable for fine-featured, high-precision applications, especially in micro-EDM and hard-to-machine materials.
Though more expensive, these wires are indispensable in advanced electronics and tooling.
• Wire Diameter: Affects Precision and Kerf Width
Wire EDM typically uses wire diameters ranging from 0.05 mm to 0.30 mm.
Operators use thinner wires for intricate and tight-tolerance profiles, while they use thicker wires to achieve greater cutting stability and speed during roughing operations.
The diameter selected directly influences the kerf width, surface finish, and achievable detail.
Materials Compatible with EDM
Electrical Discharge Machining (EDM) is a highly versatile process capable of precisely machining a wide range of materials that are often challenging or impossible to work with using conventional methods.
However, the process requires materials to be electrically conductive to enable the spark erosion mechanism.
• Hard and Exotic Metals: Titanium, Inconel, Carbide, Tool Steel
EDM is particularly suited for machining hard and exotic metals that resist traditional cutting techniques.
Manufacturers commonly machine Titanium and Inconel via EDM in the aerospace, medical, and energy sectors due to their exceptional strength, corrosion resistance, and high-temperature performance.
Carbide and tool steels, prized for their wear resistance and hardness, also benefit from EDM’s ability to create complex shapes without inducing mechanical stresses or thermal distortion.
• Conductive Materials: Copper, Aluminum, Graphite
Materials with high electrical conductivity, such as copper and aluminum, are readily machinable by EDM.
Copper’s excellent conductivity and aluminum’s lightweight nature make them suitable for electrical components, molds, and intricate parts.
Graphite, often used as an electrode material itself, can also be machined by EDM to produce detailed shapes with fine surface finishes.
• Challenges with Non-Conductive and Ceramic Materials
A fundamental limitation of EDM is its inability to process non-conductive materials such as ceramics, glass, and many composites.
These materials do not permit electrical discharge between the electrode and workpiece, rendering EDM ineffective.
While research into hybrid methods and conductive coatings is ongoing, machining non-conductive materials typically requires alternative techniques like laser machining or ultrasonic machining.
Applications of Wire EDM
Wire Electrical Discharge Machining (Wire EDM) has established itself as an indispensable manufacturing technology across a broad spectrum of industries, owing to its ability to produce intricate, precise components from hard and conductive materials.
Its non-contact, thermo-electric process enables machining of complex shapes with tight tolerances and excellent surface finishes, making it ideal for a variety of high-value applications.
Aerospace
In aerospace manufacturing, Wire EDM plays a critical role in producing complex components such as turbine blades and fuel system parts.
These components demand exceptional precision and surface integrity to withstand extreme operating conditions, and Wire EDM delivers the required accuracy without inducing mechanical stresses or heat-affected zones.
Automotive
The automotive industry leverages Wire EDM for the fabrication of transmission components and injection nozzles, where dimensional accuracy and repeatability directly impact performance and reliability.
Wire EDM allows manufacturers to achieve fine geometries and intricate profiles necessary for efficient engine operation and emission control.
Medical
Wire EDM is pivotal in the medical sector for manufacturing surgical instruments and implants.
The process’s ability to machine biocompatible materials with high precision ensures the production of devices that meet stringent regulatory standards while maintaining structural integrity and functionality.
Electronics
In electronics manufacturing, Wire EDM is used to produce components such as semiconductor parts and precision connectors. The method’s fine control over cutting paths allows for the creation of miniature and highly detailed elements essential for advanced electronic devices.
Tool & Die
Tool and die making benefits enormously from Wire EDM, which is used to create dies, punches, and molds with complex geometries and intricate details. The process supports rapid prototyping and production tooling by enabling accurate and repeatable machining of hard tool steels and alloys.
Jewelry and Watchmaking
Wire EDM also finds application in the jewelry and watchmaking industries, where it enables artisans and manufacturers to craft delicate and detailed designs from precious metals with unmatched precision and minimal material waste.
R&D and Prototyping
Research and development, as well as prototyping activities, rely on Wire EDM to quickly produce accurate prototypes and experimental components. Its flexibility and precision reduce lead times and facilitate iterative design improvements without compromising material properties.
Advantages of Wire EDM
Wire Electrical Discharge Machining (Wire EDM) offers a suite of compelling advantages that have made it a cornerstone technology in precision manufacturing. Its unique, non-contact thermo-electric machining process enables unparalleled accuracy and versatility:
Ultra-High Precision and Tight Tolerances:
Wire EDM consistently achieves tolerances as tight as ±0.0001 inches (±2.5 microns), making it ideal for applications requiring exceptional dimensional control and repeatability.
No Mechanical Stress or Distortion:
Unlike conventional machining, Wire EDM operates without direct contact between the tool and the workpiece, eliminating mechanical forces that could induce stress, deformation, or damage to delicate components.
Excellent Surface Finish:
The controlled sparking and fine wire diameter produce smooth surfaces with minimal post-processing, reducing the need for additional finishing operations.
Capability to Cut Hard Materials with Ease:
Wire EDM efficiently machines extremely hard or tough materials such as tool steels, carbides, and exotic alloys that are difficult or impossible to machine with traditional methods.
Ideal for Complex and Delicate Geometries:
The process excels in creating intricate shapes, fine details, and sharp internal corners, enabling the fabrication of components with complex profiles and delicate features.
Environmentally Friendly Process:
Wire EDM uses dielectric fluids such as deionized water, which can be recycled, and the process generates minimal airborne contaminants, contributing to a cleaner and safer working environment.
Limitations and Challenges
Despite its numerous advantages, Wire EDM also presents certain limitations and operational challenges that must be carefully considered:
Restricted to Electrically Conductive Materials:
Wire EDM relies on electrical discharge to erode material; Therefore, EDM inherently limits machining to conductive metals and alloys, excluding most ceramics and plastics.
Slower Material Removal Rate:
Compared to milling, laser cutting, or other conventional processes, Wire EDM generally exhibits a slower rate of material removal, particularly in rough cutting stages, which can impact production throughput.
High Equipment and Maintenance Costs:
The advanced CNC control systems, precision wire feeders, and dielectric fluid management contribute to significant initial investment and ongoing maintenance expenses.
Requirement for Clean Dielectric Fluid and Close Monitoring:
Maintaining the purity of the dielectric fluid is essential to prevent wire breakage and ensure consistent cutting performance, necessitating rigorous filtration and monitoring systems.
Formation of Recast Layer:
The intense localized heat generated during sparking can cause a thin recast layer of resolidified material on the workpiece surface, which may require additional post-processing to remove for critical applications.
Performance and Capabilities of Wire EDM
Industry professionals recognize Wire Electrical Discharge Machining (Wire EDM) for its precision and versatility, yet various operational parameters and machine configurations influence its performance metrics.
Understanding these capabilities is essential for selecting the appropriate process and optimizing machining strategies.
Maximum Cutting Thickness
Wire EDM machines typically accommodate cutting thicknesses ranging from as thin as 0.004 inches (approximately 0.1 mm) up to 16 inches (around 406 mm), depending on the model and power capacity of the equipment.
This broad range enables Wire EDM to machine both thin, delicate components and thick, robust parts such as dies, molds, and large aerospace components with consistent accuracy.
Cutting Speed
The cutting speed of Wire EDM varies based on material properties and process settings but generally falls within the range of 0.004 to 0.012 inches per minute (approximately 0.1 to 0.3 mm/min).
While this speed is slower compared to conventional machining, it allows for precise, controlled material removal necessary for intricate profiles and fine features.
Time to Cut
The total machining time for Wire EDM can span from several hours to multiple days, heavily influenced by the complexity of the part geometry, thickness of the workpiece, and surface finish requirements.
Multi-pass machining—starting with roughing passes followed by successive skim passes to enhance surface quality—adds to the overall duration but ensures superior results.
Key Factors Influencing Performance
Several critical factors affect Wire EDM performance and output quality:
- Wire Type: Choice of wire material (brass, coated, tungsten, etc.) impacts cutting efficiency, precision, and surface finish.
- Material Hardness: Harder materials require slower cutting speeds and may increase wire wear.
- Part Size: Larger workpieces naturally require longer cutting times and may demand more robust fixturing.
- Finish Requirements: Higher surface finish standards necessitate additional skim passes, increasing process time.
By carefully balancing these variables, manufacturers can tailor Wire EDM processes to achieve optimal precision, surface integrity, and productivity, meeting the demanding specifications of high-technology industries such as aerospace, medical devices, and precision tooling.
Cost Considerations in Wire EDM
Wire Electrical Discharge Machining (Wire EDM) represents a critical manufacturing process that balances precision and complexity, but it also carries distinctive cost factors that impact overall project budgeting and profitability.
Understanding these cost drivers is essential for effective cost management and process optimization.
Hourly Cost Range
The hourly cost of operating Wire EDM equipment can vary significantly, typically ranging from $15 to over $100 per hour.
This broad spectrum reflects differences in machine capabilities, geographic location, service levels, and part complexity.
Higher-end machines with advanced automation and multi-axis capabilities generally command the upper end of this range due to their enhanced precision and productivity.
Influencing Factors
Several key elements contribute to the cost structure of Wire EDM operations:
Machine Depreciation and Wear:
Wire EDM machines involve substantial capital investment. Depreciation costs, combined with wear and tear from continuous operation—especially on high-precision components like guides and drive systems—form a significant portion of overall expenses.
Labor and Expertise:
Skilled operators and programmers are required to set up, monitor, and optimize Wire EDM processes.
Their expertise directly influences machining efficiency, quality, and troubleshooting speed, adding to labor costs.
Consumables:
Consumable items such as the wire electrode, dielectric fluid, and filtration systems represent recurring expenses.
Wire consumption varies with part complexity and size, while the dielectric fluid requires regular replacement and careful management to maintain cutting quality and prevent environmental hazards.
Power and Setup Time:
Wire EDM is energy-intensive, and power consumption contributes to operational costs.
Additionally, setup time—including fixture preparation, wire threading, and machine calibration—adds to the overall cost, particularly for short-run or complex jobs.
By comprehensively accounting for these cost factors, manufacturers can better forecast expenses, negotiate competitive pricing, and identify opportunities for efficiency improvements, ultimately enhancing the economic viability of Wire EDM in precision manufacturing applications.
Safety and Maintenance
Wire EDM technology, while highly precise and efficient, involves complex machinery and electrical systems that necessitate rigorous safety and maintenance protocols to ensure optimal performance, longevity, and operator protection.
Safety Protocols
Operator Training:
Comprehensive training programs are fundamental to safe Wire EDM operation.
Operators must be proficient not only in machine programming and process parameters but also in recognizing potential hazards, proper handling of consumables, and emergency procedures.
Well-trained personnel reduce the risk of accidents, improve response times during anomalies, and contribute to higher quality outcomes.
Emergency Stops and Enclosure Systems:
Modern Wire EDM machines are equipped with strategically placed emergency stop buttons allowing immediate shutdown in case of malfunction or safety threat.
Enclosure systems serve to contain sparks, dielectric fluids, and debris, minimizing operator exposure and environmental contamination.
These safety features are essential for compliance with industry standards and workplace safety regulations.
Routine Maintenance
Replacing Wires and Flushing System Checks:
The wire electrode is a critical consumable subject to wear and breakage. Regular replacement is necessary to maintain cutting precision and avoid machine downtime.
Similarly, the flushing system—which removes eroded particles from the machining gap—must be routinely inspected and serviced to ensure continuous, effective debris removal and prevent clogging.
Cleaning Filters and Fluid Quality Control:
Dielectric fluid purity directly affects machining quality and equipment health. Filters must be cleaned or replaced regularly to remove contaminants, while fluid quality should be monitored and maintained within specified parameters to prevent dielectric breakdown or microbial growth, both of which can compromise cutting performance and safety.
Machine Calibration and Software Updates:
Periodic calibration of mechanical and electronic components ensures the machine’s accuracy and repeatability.
Additionally, keeping the control software up to date allows operators to benefit from the latest features, improved algorithms, and security patches, all of which contribute to safer, more efficient machining processes.
Implementing stringent safety measures alongside a proactive maintenance regime not only safeguards personnel but also extends machine life, minimizes unplanned downtime, and wire EDM maintains the high precision standards that have earned it its reputation..
Choosing a Wire EDM Service Provider
Selecting the right Wire EDM service provider is a critical decision that can significantly impact the quality, efficiency, and cost-effectiveness of your manufacturing projects.
Given the precision and technical demands of Wire EDM, partnering with a capable and reliable provider ensures that your components meet stringent specifications while adhering to project timelines and budget.
Key Questions to Ask
Experience and Machine Capabilities:
Investigate the provider’s industry experience and the sophistication of their equipment.
Advanced machines with multi-axis capabilities, high-precision controls, and diverse wire types allow for greater versatility and accuracy across complex geometries and materials.
Precision Guarantees and Tolerances:
Confirm the provider’s ability to meet the required tolerances, ideally supported by documented precision guarantees.
Tight tolerances are paramount in applications such as aerospace, medical devices, and toolmaking, where even minor deviations can compromise function or safety.
Lead Time and Service Pricing:
Timeliness is often as important as quality. Inquire about typical lead times and how they align with your project schedule. Transparent pricing models that detail labor, setup, and consumables help avoid unexpected costs.
Quality Assurance Systems and Certifications:
Evaluate the provider’s commitment to quality through certifications such as ISO 9001, AS9100, or other relevant standards.
Robust quality assurance systems—including in-process inspections, final testing, and traceability—reflect a provider’s dedication to delivering consistent, high-quality results.
Evaluating Potential Providers
Portfolio of Work: Reviewing a provider’s portfolio offers insight into their technical expertise and experience with similar projects or industries.
High-quality photos, case studies, and detailed project descriptions demonstrate capability and reliability.
References and Reviews: Testimonials from past clients provide valuable third-party validation of a provider’s professionalism, customer service, and adherence to specifications and deadlines.
Trial Jobs or Sample Cuts: Whenever possible, request trial runs or sample parts.
This hands-on evaluation allows you to verify the precision, surface finish, and overall quality before committing to large-scale production runs.
Choosing a Wire EDM service provider is a strategic partnership that requires careful due diligence.
By asking the right questions and thoroughly evaluating candidates, you ensure your project benefits from expert craftsmanship, advanced technology, and dependable service—ultimately contributing to successful manufacturing outcomes and long-term collaboration.
EDM vs. Other Machining Processes
Electrical Discharge Machining (EDM) stands as a pivotal technology in precision manufacturing, yet its unique characteristics differentiate it significantly from other conventional and advanced machining methods.
Understanding these distinctions is crucial for selecting the optimal process tailored to specific materials, geometries, and production requirements.
Wire EDM vs. Sinker EDM
Wire EDM and Sinker EDM, while both relying on spark erosion, serve distinct roles in manufacturing.
Wire EDM excels in creating intricate two-dimensional profiles and fine details by using a continuously fed thin wire as the electrode, making it ideal for precision cutting of hardened materials and complex shapes.
In contrast, Sinker EDM utilizes shaped, often custom-machined electrodes to plunge into the workpiece, making it more suitable for producing deep cavities, molds, and three-dimensional features.
The electrode strategy in Sinker EDM involves more elaborate electrode fabrication but enables shaping of internal geometries impossible with wire EDM.
Both methods achieve exceptional accuracy, but their use cases and tool approaches dictate their application scope.
Wire EDM vs. Laser Cutting
When compared with laser cutting, Wire EDM offers distinct advantages and limitations.
Wire EDM is highly effective for electrically conductive materials regardless of hardness, including tool steels and exotic alloys, where laser cutting may struggle due to heat-affected zones or lower absorption rates.
Wire EDM provides superior dimensional accuracy and edge quality with minimal thermal distortion, critical for applications demanding tight tolerances and excellent surface finishes.
Laser cutting, on the other hand, excels in speed and versatility across a broad range of materials, including non-metals, but often at the cost of edge precision and potential microstructural changes.
Thus, the choice depends on balancing material compatibility, required accuracy, and production speed.
Wire EDM vs. CNC Milling
Wire EDM and CNC milling represent fundamentally different approaches to material removal. CNC milling uses mechanical cutting tools to physically shear material, which can introduce tool wear, mechanical stresses, and limitations on machining extremely hard or delicate materials.
Conversely, Wire EDM is a non-contact process relying on controlled electrical discharges, eliminating tool wear and minimizing mechanical stresses or deformation.
This makes Wire EDM particularly advantageous for machining hard metals, intricate profiles, or delicate parts prone to distortion under mechanical loads.
However, milling often remains preferable for higher material removal rates and rough machining of large volumes.
Understanding these differences allows manufacturers to strategically integrate both technologies for optimized production workflows.
In summary, EDM technologies, especially Wire EDM, provide unparalleled precision and material versatility unmatched by many conventional machining methods.
Nonetheless, the decision between EDM, laser cutting, and CNC milling hinges on specific application requirements such as material type, geometric complexity, tolerance levels, and production speed.
A comprehensive evaluation of these factors ensures the selection of the most efficient and effective manufacturing process.
Future of Wire EDM Technology
Wire EDM technology continues to evolve rapidly, propelled by advancements in automation, artificial intelligence, and materials science.
These innovations promise to redefine the boundaries of precision manufacturing, enabling unprecedented efficiency, accuracy, and versatility.
Integration with Robotics and AI
The incorporation of robotics and AI into Wire EDM systems is transforming the traditional machining landscape. Robotics enable seamless material handling, loading, and unloading, minimizing human intervention and reducing cycle times.
Meanwhile, AI algorithms optimize cutting parameters in real-time by analyzing process data, enhancing accuracy and minimizing wear.
This fusion facilitates adaptive machining strategies that dynamically respond to material variations and tool conditions, leading to consistently superior part quality.
Predictive Maintenance and Smart Sensors
Smart sensor technologies embedded within Wire EDM machines are revolutionizing maintenance practices.
By continuously monitoring critical components—such as wire tension, dielectric fluid quality, and power supply stability—these sensors enable predictive maintenance regimes.
This approach anticipates potential failures before they occur, reducing unexpected downtime, lowering repair costs, and extending machine longevity.
The integration of IoT (Internet of Things) connectivity further allows remote diagnostics and performance tracking, contributing to smarter, data-driven factory environments.
Faster Cutting with Less Wear
Ongoing research into power supply technologies and wire materials aims to accelerate cutting speeds without compromising precision or increasing electrode wear.
Innovations such as high-frequency pulsed power supplies and coated wires enhance discharge efficiency and stability, allowing higher machining speeds while maintaining tight tolerances.
These improvements not only boost productivity but also reduce consumable costs and environmental impact, aligning with industry demands for sustainable manufacturing.
Advanced Materials Processing
As industries adopt increasingly exotic and challenging materials—such as high-temperature superalloys, composite laminates, and next-generation ceramics—Wire EDM technology is adapting to meet these demands.
Advances in dielectric fluids, wire materials, and process control enable reliable machining of these materials with minimal thermal damage.
This capability expands Wire EDM’s applicability into cutting-edge sectors like aerospace, medical devices, and electronics, where precision machining of complex, hard-to-machine materials is critical.
Automation for Lights-Out Manufacturing
The vision of fully automated, lights-out manufacturing facilities is becoming a reality with Wire EDM.
Integrated robotic systems combined with advanced process monitoring and AI-driven decision-making allow continuous, unattended machining operations.
This shift not only maximizes machine utilization and throughput but also enhances consistency and quality by eliminating human error.
As factories evolve toward Industry 4.0 standards, Wire EDM’s role as a highly automated, intelligent process will be pivotal in driving leaner, more flexible manufacturing ecosystems.
In conclusion, the future of Wire EDM is defined by smart automation, enhanced performance, and expanded material capabilities.
These advancements promise to sustain Wire EDM’s position as a critical enabler of precision manufacturing, meeting the growing complexity and productivity demands of modern industries.
Conclusion
Wire Electrical Discharge Machining (EDM) stands as a cornerstone technology in the realm of modern precision engineering.
Its unparalleled ability to machine complex geometries with exceptional accuracy and minimal mechanical stress has made it indispensable across diverse industries—from aerospace and automotive to medical devices and electronics.
The distinct advantages of Wire EDM—such as ultra-fine tolerances, excellent surface finishes, and the capability to cut hard and exotic materials—empower manufacturers to push the boundaries of design and functionality.
Furthermore, its non-contact machining process ensures the integrity of delicate parts, enhancing both reliability and performance.
As businesses strive to meet increasingly stringent quality standards while optimizing efficiency, Wire EDM offers a strategic pathway to innovation.
By integrating advanced EDM technologies into their manufacturing workflows, companies can achieve consistent product excellence, reduce lead times, and unlock new possibilities in material processing.
In an era defined by rapid technological advancement and fierce global competition, leveraging Wire EDM not only elevates operational capabilities but also fosters a culture of continuous improvement and forward-thinking innovation.
Ultimately, Wire EDM remains a vital enabler for businesses committed to delivering superior quality, operational efficiency, and transformative engineering solutions.
