CNC milling is a widely used manufacturing process. Understanding its cost components and optimization methods can help companies quote accurately and enhance market competitiveness. This article will focus on CNC machining cost, analyze its components and influencing factors, and provide practical suggestions for reducing cost.
Why is CNC machining cost important?
CNC machining costs in the manufacturing industry have a significant position. For enterprises, an accurate understanding of machining costs not only traditionally tonally sets product pricing but also optimizes the allocation of resources and improves project profitability. By clarifying the cost components, companies can plan their budgets more scientifically and avoid production delays due to insufficient funds or overspending.
At the same time, reasonable cost control can help enterprises stand out in fierce market competition. Too high a price may result in a loss of customers, and too low a price may harm the enterprise’s profit. Understanding cost details, such as material, processing,g time, and labor costs, can help companies optimize quotes and win more orders while maintaining quality.
In addition, cost management can facilitate internal process improvement. By identifying key factors that affect costs, such as machining efficiency, material utilization, and equipment maintenance, companies can reduce waste and increase productivity. In short, CNC machining cost is not only a reflection of the value of the product but also a core element of enterprise competitiveness and sustainable development.
The main components of CNC machining cost
The main components of CNC machining cost can be divided into the following aspects, each of which plays a vital role in the final cost:

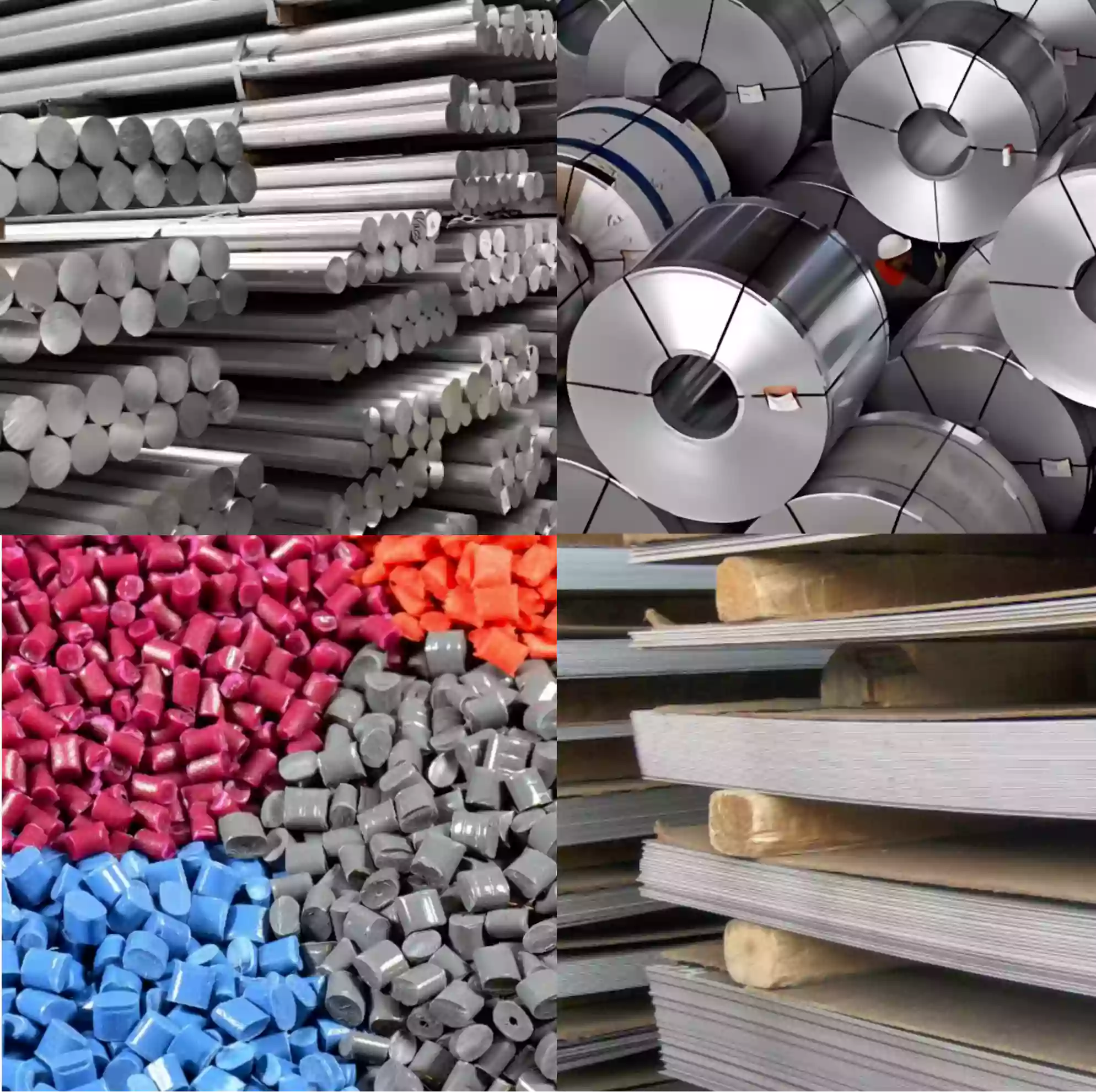

1. Raw material cost
This is the most fundamental component of machining costs and includes the cost of purchasing the required raw materials. For example, price differences between aluminum, steel, stainless steel, or plastic can significantly affect the overall cost. In addition, the utilization rate of the material (e.g., the percentage of scrap) has an impact on the cost.
2. Processing costs
Processing costs are mainly determined by the running time of the CNC equipment and the salary of the operating workers. It includes the following aspects:
Equipment utilization cost: electricity consumption for running the CNC machine, depreciation of the equipment, and routine maintenance costs.
Process complexity: The complexity of the part design directly affects machining time. Complex geometries, tight tolerance requirements, or multiple machining steps add to the cost.
Tool Consumption: Wear and frequency of cutting tool replacement can also affect costs, especially when machining more rigid materials.
3. Post-processing costs
Post-processing is often required to meet aesthetic or functional requirements, such as surface polishing, plating, pa, printing, or heat treatment. These process steps add additional time and material and impact the final cost.
4. Indirect Costs
This is the cost associated with the operation of the business, including:
Factory rent, utility costs.
Equipment and labor costs for quality testing.
Logistics and transportation costs.
These indirect costs need to be prorated in the final price of each product.
5. Profit
Profit is the portion of funds that a company reserves for continued development and operation. A reasonable profit percentage is usually determined based on market conditions, competitor pricing, and customer demand.
Understanding these cost components can help optimize your CNC machining cost structure, improve your company’s competitiveness, and provide your customers with more cost-effective product solutions.
What are the main factors affecting the cost of CNC milling machining?
CNC milling machining costs are affected by a combination of factors, each of which will have a different impact on machining costs. The following is a detailed analysis:
1. Machine size
Machine size directly determines the adaptability and operational efficiency of the equipment:
Smaller machines are suitable for processing small parts, with less power consumption and footprint and lower cost.
Large machines, on the other hand, use larger-sized sized workpieces and, although they can reduce the number of fixtures, they have a high acquisition cost and consume more energy to separate.
2. Tolerance reduction
The tightness of tolerances can significantly increase costs:
Loose tolerances: shorter machining times, less wear and tear on tools and machines, and lower costs.
Tight tolerances: requires precision cutting, higher quality tools, multiple inspections, longer machining times, and increased costs.
3. Number of axes
The number of axes on a CNC machine determines its ability to machine complexity, and there is a significant difference in machining costs for different numbers of axes:
3.1 3-Axis CNC Machining Costs
3-axis CNC machines are the most commonly used type of CNC machining for simple or moderately complex parts. Their machining characteristics are as follows:
(1) 3-axis CNC machining cost for small parts
advantages:
It is suitable for flat surface machining and simple geometries (e.g., holes, slots, edge cutting, etc.).
Simple machining path, short programming time, and low machine occupancy time.
Commonly used in mass production, it can reduce the cost per piece through efficient machining.
Cost influencing factors:
Material selection directly affects cutting speed and tool life.
When the machining allowance is less, it can improve the material utilization and reduce the waste cost.
(2) Cost of 3-axis CNC machining of large parts
challenges:
Large parts require longer machining times, more fixturing, and may require special fixtures.
Machine movement range limits machining efficiency and may require segmented machining, which increases labor intervention and adjustment costs.
Cost optimization:
Optimize machining paths and reduce unnecessary non-cutting movements.
Use stable large work-holding fixtures to reduce the impact of multiple clamping on machining accuracy.
(3) Comparison of surface finish
Ordinary finish (Ra > 3.2 μm):
Completes machining with standard tools and higher cutting speeds at a lower cost.
High finish (Ra ≤ 1.6 μm):
It requires lower feed rates, a reduced depth of cut, and possibly finishing tools or subsequent polishing, which increases cost.
3.2 5-axis CNC machining costs
5-axis CNC machines can machine complex 3D shapes and surfaces in a single clamping and are preferred in high-end manufacturing (e.g., aerospace and medical devices). Their machining costs vary depending on part size and complexity:
(1) 5-axis CNC machining costs for small and complex parts
advantage:
Small and complex parts often require free-form surfaces or multi-angle hole machining. 5-axis machines can machine multiple surfaces in a single setup, reducing setup time and improving accuracy.
Ideal for parts that require high accuracy and finish, such as turbine blades and medical implants.
Cost impact factors:
Higher programming complexity: higher skilled engineers are required, and programming time and costs increase significantly.
Tool consumption: complex parts require multiple tools, increasing procurement and replacement costs.
(2) 5-axis CNC machining costs for large parts
challenges:
Large and complex parts require 5-axis machines with large strokes, and such machines have high acquisition and maintenance costs.
Difficulty in process path planning and longer machining times.
Cost optimization:
Reduce equipment occupancy time by machining large parts in segments using a modular design and assembling them.
Introduce advanced tool materials (e.g., ceramic or coated tools) to improve cutting efficiency.
3.3 CNC turning costs (small parts)
CNC lathes are mainly used for processing axisymmetric parts, which are highly productive and suitable for high-volume manufacturing.
Scope of application:
Suitable for cylindrical or conical parts, such as shafts, sleeves, and rings.
Relatively simple machining operation and short machining time.
Cost influencing factors:
Material hardness: More rigid materials require slower feed rates, which increases machining times and speeds up tool wear.
Geometric complexity: increased chamfering, grooving, or multi-segment shape design will prolong the machining time and cost.
3.4 Optimization Strategies
Balance cost and efficiency by selecting high-efficiency tools or adjusting parameters (e.g., feed rate, cutting speed).
Using automated loading and unloading equipment in mass production reduces labor costs.
3.5 Comprehensive comparison: 3-axis vs. 5-axis CNC machining cost
4. Milling time
The following factors determine milling time:
Material of the workpiece (hardness, toughness).
Process complexity (geometry, machining path).
Type of tool used and cutting parameters (feed rate, depth of cut).
The longer the machining time, the higher the equipment occupancy and labor costs.
5. Type of CNC machine/grinding machine
The type of machine affects the efficiency and accuracy of machining:
High-speed CNC machine: This machine is expensive but suitable for high precision, small parts, and high efficiency.
General-purpose CNC machine: It is relatively low-cost, but its machining speed and accuracy may not be as good as those of high-speed machines.
Specialized mills are suitable for specific-purpose parts machining, but equipment acquisition costs and flexibility are high.
6. Part geometry
The complexity of the part geometry directly determines the machining path design difficulty and processing time:
Simple shapes (such as rectangular blocks): a single machining path, low cost.
Complex shapes (such as free-form surf and aces, internal cavity structure): the need for multi-axis machining and multiple clamping, increasing time and cost.
7. Production lead times
The tighter the production cycle, the higher the processing costs:
Shorter lead times may require overtime, more efficient equipment, or the optimization of processes, all of which increase costs.
On the other hand, longer lead times allow for more flexible scheduling of resources, reducing costs.
8. Labor costs
Labor costs are mainly related to equipment operators and engineers:
Highly skilled operators and programmers are paid more but are effective in reducing error rates and increasing efficiency.
There are differences in labor costs in different regions (e.g., developed and developing countries).
9. Tooling
The quality and lifetime of tools have a significant impact on costs:
High-quality tools: high initial cost, but long life, suitable for high precision machining.
Ordinary tools: These are low-cost but wear quickly and may increase the frequency of downtime for replacement.
The hardness of the material and the cutting parameters also influence tool wear.
10. Delivery time
The customer’s delivery needs affect the cost:
Expedited orders: We need to prioritize resource scheduling or even overtime processing, which increases costs.
Normal delivery time: cost can be controlled.
11. Raw material cost
The type and quality of raw materials directly affect the processing cost:
High-performance materials (e.g., titanium alloy, carbon fiber): higher cost and more difficult process.
Ordinary materials (e.g., aluminum, ABS plastic): lower cost, less difficult to process.
12. CNC Programming Cost
Programming is a key step in CNC machining, and the following factors determine its cost:
Programming rate:
3-axis: about $40/hr.
4-axis: $45-$50/hr.
5-axis: $75-$120/hour (due tits a significant increase in complexity).
Factors affecting programming costs:
Programming complexity: the more complex the part geometry, the longer the programming time and the higher the cost.
Engineer skill level: highly skilled individuals can complete complex programming faster but at a higher salary.
Regional differences: Programming costs vary by region. For example, programming costs are higher in developed countries than in developing countries.
A comprehensive analysis of the above factors will help manufacturers and customers work to optimize machining costs and achieve a better price/performance while meeting design requirements.
How to reduce CNC Machining Costs?
CNC machining is popular for its high precision and flexibility, but its costs can easily climb. Here are seven practical strategies that can help organizations significantly reduce machining costs:
1. Improve machining efficiency
Use multi-axis CNC machines to complete multiple processes at once and reduce the number of workpiece clamping.
Rationalize work processes to reduce machine idle time.
Select appropriate cutting parameters (e.g., cutting speed and feed rate) to enhance machining speed while maintaining surface quality.
2. Optimize labor allocation
Allocate experienced operators to reduce rework due to human errors.
Introduce automated equipment (e.g., robots or automatic feeders) to reduce labor involvement.
3. Reduce material and tooling costs
Optimize material selection: choose more economical materials while maintaining performance, using 6061 aluminum instead of the more expensive 7075 aluminum.
Regularly check tool wear and use durable and economical tools for longer life.
4. Improve production processes
Modular design simplifies machining steps and avoids complex shapes and excessive tolerance requirements.
Implement lean manufacturing to reduce waste and shorten production lead times.
5. Vetting suppliers: balancing price and quality
Selecting reputable suppliers involves comparing quotes and focusing on machining quality and delivery times. Long-term suppliers usually offer favorable prices and better service.
6. Get quotes in advance
Provide complete drawings and technical requirements in advance so suppliers can optimize the design and estimate the cost according to their experience, thus avoiding unnecessary processing steps.
7. Optimize design through DFM (Design for Manufacturing)
DFM (Design for Manufacturability) is a technology that reduces processing difficulty and cost by evaluating manufacturing feasibility at the design stage. It helps designers identify possible manufacturing problems early in product development and optimize the design time to improve productivity. The following are specific ways to optimize designs through DFM:
Simplify geometry
Avoid overly complex designs such as superfluous details, deep holes, sharp corners, or thin-walled structures. Complex geometries often require customized tools or multiple machining, adding time and expense.
Reduce Tolerance Requirements
Tight tolerances often require higher precision machining equipment and longer machining times. Manufacturing costs can be significantly reduced by rationalizing tolerance ranges and using precision tolerances only in critical areas.
Optimize material use
Choosing machine-friendly materials (e.g., aluminum, and mild steel) reduces tool wear and increases machining efficiency. At the same time, avoid unnecessary material waste, e.g., using standard sizes of raw mats to reduce the amount of cutting.
Avoid unnecessary machining features.
For example, reducing internal chamfers, blind holes, and other design features that require special tools or multi-axis machines to achieve can make manufacturing more difficult.
What are the benefits of cost management?
In manufacturing, implementing effective cost management strategies reduces expenses and creates a long-term competitive advantage for your organization. Here are four key benefits of cost management:
1. More accurate quotes
Through detailed cost analysis, companies can accurately account for the cost of each process, ma, and resource and thus provide more competitive and transparent quotations. This enhances customers’ trust in the company and reduces profit and inappropriate quotes.
2. Enhance market competitiveness
Good cost control enables companies to offer quality products at more reasonable prices, thus attracting more customers. At the same time, lower production costs for enterprises set aside more profit space, making price competition occupy a favorable position.
3. Quality and Efficiency Improvement
Cost management does not mean sacrificing quality; it means eliminating waste and improving efficiency by optimizing resource allocation and production processes. For example, purchasing high-quality but economical materials and using efficient equipment can reduce costs and enhance the quality of products.
4. Long-term cost savings
Effective cost management is a long-term investment. Companies can gradually optimize their cost structure by optimizing design, improving production technology, and stabilizing the supply chain. This cumulative cost savings will create higher profitability for the enterprise.
Automated Quotation Software: A Tool for Improving CNC Machining Efficiency
Automated quoting software is an intelligent tool used by many large companies to standardize and optimize the quoting process. It analyzes 3D CAD files uploaded by customers and quickly calculates machining costs. This type of software simplifies the complex manual quoting process into an automated operation, bringing significant advantages to customers and suppliers.
1. Working Principle
After the customer uploads the 3D model, the software analyzes the file through algorithms. It generates an instant quote by combining data such as material type, size, process requirements (e.g., cutting method, surface treatment), and tolerance requirements. At the same time, it considers factors such as machine utilization, machining time, and tool measures to ensure the quote’s accuracy.
2. Advantages
High efficiency: generates quotes within minutes, dramatically reducing the time required for traditional manual review.
Transparency: Provides detailed cost breakdowns, making it clear to customers where each expense comes from.
Standardized: Avoid errors or subjective judgments in manual pricing and improve the consistency of quotes through unified calculation rules.
Facilitate customer decision-making: Customers can quickly compare multiple options and optimize the design to achieve the most cost-effective solution.
Software development is a huge cost. Generally speaking, large companies in the manufacturing industry can afford this part of the cost, while small companies are mostly based on experience, past data, and cost evaluation.
Some companies use automated quotes, such as Xometry, Hubs, Rapiddirect, etc…
Summarize
Companies can achieve cost control and enhance market competitiveness while improving efficiency through an in-depth analysis of the cost components and influencing factors of CNC milling and their combination with practical optimization methods. In the modern manufacturing industry, accurate cost management is the basis of reasonable quotations and the key for enterprises to gain a foothold in the market.
Ruiyi is committed to providing customers with high-quality, cost-effective CNC machining services. With advanced technology and experienced teams, we help customers optimize their designs, control costs, and enhance product value. Whether you are a startup or an industry leader, choosing a professional and reliable partner is essential in realizing cost advantages.
Through scientific management and continuous optimization, CNC machining is not just a production process but an enabling tool for companies to maximize profits. If you need more CNC machining optimization, please get in touch with Ruiyi for more detailed customized solutions.
