Mold Manufacturing and 3D Printing Integrated Manufacturing Technology.
Since the 1980s, 3D printing technology, with its unique concept of additive manufacturing, has gradually moved from a marginal technology to the core stage of manufacturing.
This is due to its constantly innovative forms of technology..
From the initial selective laser sintering, fused deposition, and other basic technologies, 3D printing technology has evolved into today’s layered solid manufacturing, selective laser melting molding, and other diversified forms.
It now shows strong application potential and value in fields such as industrial design, mold processing and manufacturing, aerospace, and medical and healthcare.
It not only greatly enriches the freedom of product design and shortens the product cycle from concept to object, but also reduces costs and improves production efficiency.
By optimizing the production process, it has become an indispensable part of modern manufacturing.
However, in the key link of mold manufacturing, pure 3D printing technology is often difficult to meet the high precision, high strength, and long life requirements.
This is especially true for complex molds.
Traditional mold manufacturing mainly relies on subtractive manufacturing technologies such as cutting.
Although the technology is mature, it has problems such as long processing cycles, significant material waste, and a lack of flexibility.
Therefore, exploring the integration of mold manufacturing and 3D printing technology has become an important way to promote the transformation of the mold manufacturing industry.
It also contributes to the industry’s upgrading.
Conceptual analysis of mold manufacturing and 3D printing integrated manufacturing technology

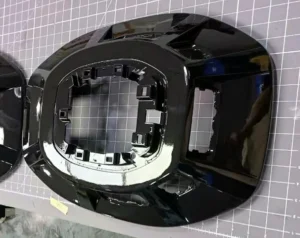

Mold manufacturing
Mold manufacturing is the core field of precision processing technology.
It involves mold design, material selection, processing, molding, and other aspects.
As a key tool in the production process, the manufacturing accuracy of the mold directly affects the quality of the product and production efficiency.
During the manufacturing process of molds, manufacturers use high-precision machine tools and advanced processing technologies..
These include CNC milling and EDM, which ensure the precision and durability of the molds.
At the same time, mold designers use CAD/CAM software to optimize the structure of the mold and improve manufacturing efficiency.
In addition, mold manufacturing also focuses on the selection of materials and heat treatment process to cope with the production needs of different products.
In summary, mold manufacturing is a comprehensive technology integrating design, processing, materials and other disciplines.

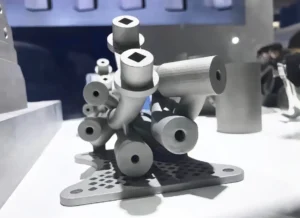

3D printing technology
3D printing technology is completely subverting traditional processing and manufacturing methods.
With its unique additive manufacturing technology, it enables the efficient and flexible processing of structurally complex parts.
The technology first relies on advanced computer software to accurately slice and layer the designer’s three-dimensional model.
It converts the complex 3D shape into a series of easy-to-handle two-dimensional graphics.
This process not only simplifies manufacturing, but also improves accuracy.
Then, according to the specific processing requirements, the system completes the filling of the 2D graphics in an orderly manner.
It integrates all the information and imports it into the printer control system.
The printer control system then accurately adds the print material layer by layer according to the preset filling path.
This continues until the printer finally constructs a complete 3D solid workpiece.
This way of building from two-dimensional to three-dimensional makes 3D printing integrated manufacturing technology highly versatile.
It can easily cope with a variety of complex structures, realizing the flexibility and precision that are difficult to achieve with traditional manufacturing technology.
Characteristics of Mold Manufacturing and 3D Printing Technology
Application Advantages
As the core of precision processing, mold manufacturing ensures accuracy and durability through high-precision equipment, such as CNC machine tools.
The material reduction manufacturing technology of CNC machine tools can accurately remove excess material.
This helps form a mold shape that meets the design requirements, providing a solid guarantee for the production of high-quality products.
The introduction of CNC machine tools makes the mold manufacturing process highly automated.
The machine tools under programmed control are able to process continuously and stably, significantly improving productivity and processing consistency.
At the same time, automated production reduces errors caused by human factors and improves the overall quality of the mold.
Although the traditional mold manufacturing process results in a certain amount of material waste, manufacturers can maximize material utilization.
This can be achieved by optimizing CNC programming and cutting paths.
In addition, the precise control of CNC machine tools also reduces material loss due to processing errors.
3D printing technology, with its unique additive manufacturing method, is able to quickly transform a design into a physical model.
This feature is particularly important in the field of mold manufacturing because it greatly shortens the mold development cycle.
It allows designers to quickly verify the design and make adjustments.
While traditional mold manufacturing techniques often face many challenges when dealing with complex structures, 3D printing can handle them with ease.
Whether it’s internal holes, complex surfaces, or fine structures, 3D printing can produce them with extreme precision and consistency.
This brings unprecedented flexibility to mold making.
Although the initial investment in 3D printing equipment is high, in the long run it can significantly reduce the total cost of mold manufacturing.
Especially for small batch, multi-species production needs, 3D printing can avoid the high cost of traditional mold manufacturing.
It also reduces time costs, allowing for rapid response to market changes.
Application short board
In the process of machine tool use, the power used to remove metal accounts for only about 25% of the overall power.
The rest is consumed in wear and tear, as well as auxiliary functions.
This results in a relatively low average material utilization rate, and more metal material may be wasted during machining.
If the overall material utilization can be effectively improved, significant resource savings and cost reductions can be achieved.
Although CNC machine tools have improved the level of automation and intelligence in mold manufacturing, the processing cycle is still relatively long.
This is in comparison to rapid manufacturing technologies, such as 3D printing.
This may affect the ability to get products to market quickly and respond to market changes.
For high-precision, high-complexity mold manufacturing, the initial investment in CNC machine tools and the cost of using them are relatively high.
This may put economic pressure on some small and medium-sized enterprises and limit their competitiveness in the field of mold manufacturing.
At present, the types of materials used in 3D printing technology are relatively limited.
Additionally, the performance and strength of some materials still need to be improved.
This limits the wide application of 3D printing in mold manufacturing, especially in the field of high material requirements.
Although 3D printing technology can enable the manufacture of complex structures, its accuracy and surface quality still have a certain gap.
This gap exists when compared to traditional manufacturing methods.
For molds that require high precision and finish, 3D printing technology may not be able to fully meet the requirements.
Analysis of the necessity of integrated manufacturing of mold manufacturing and 3D printing
Mold manufacturing usually relies on high-precision CNC machine tools, which can ensure the accuracy and durability of the mold.
3D printing technology is known for its rapid prototyping capability.
It can transform the design into a physical model in a short period of time, making it easy to verify and optimize the design.
The combination of the two can achieve rapid iteration from design to verification, improving the efficiency of mold development.
While traditional mold manufacturing can face challenges when dealing with complex structures, 3D printing technology can handle them with ease.
By combining the two, the advantages of 3D printing in processing complex structures can be fully utilized.
At the same time, the high precision and durability features of mold manufacturing can be leveraged to produce high-quality mold products.
Although the initial investment in 3D printing equipment is high, the integrated application with mold manufacturing helps distribute the cost of equipment.
This reduces the investment pressure on individual projects.
At the same time, the use of 3D printing technology to quickly produce prototypes and molds can reduce the cost of trial and error.
It also helps minimize time costs in the traditional mold manufacturing process.
There is often material waste in the mold manufacturing process.
However, 3D printing technology can accurately control the amount of material according to the design, reducing waste.
Through integrated manufacturing, material usage can be further optimized to improve overall cost effectiveness.
Application of Mold Manufacturing and 3D Printing Technology in Industrial Manufacturing Field
Basic concept of mold manufacturing and 3D printing integrated manufacturing
The basic concept of integrated manufacturing of mold manufacturing and 3D printing lies in the core of the deep integration of the technical advantages of the two.
This integration aims to create a new high ground in the manufacturing industry.
The high precision, high stability and batch production capacity of mold manufacturing provide a solid guarantee for the stability of product quality;
The rapid prototyping, direct molding of complex structures, and unlimited creative personalized customization capabilities of 3D printing technology have injected unlimited vitality into product innovation.
This has opened up new possibilities for enhancing creativity and advancing product design.
The combination of the two not only realizes the complementary strengthening of their technical levels, but also promotes the manufacturing industry towards intelligent, customized, and efficient directions.
This leads the new trend of future manufacturing.
Mold manufacturing and 3D printing integrated manufacturing and processing methods
The mold manufacturing field is gradually moving towards a new era of intelligent, accurate production.
In this era, the integration of mold manufacturing and 3D printing technology has become an important force driving this change.
Traditional mold manufacturing process is complex, involving design, casting, cutting, polishing and other aspects, not only time-consuming and costly.
The introduction of 3D printing technology, with its unique additive manufacturing method, significantly shortens the mold development cycle.
It also reduces production costs and enhances the complexity and accuracy of the mold.
In the mold manufacturing and 3D printing integrated manufacturing processing method of the initial stage, the introduction of 3D printing technology is undoubtedly beneficial.
It provides a new path for the rapid construction of the mold prototype and core components.
This process highlights the extraordinary ability of 3D printing in shaping complex geometries and diversifying material choices.
It also greatly simplifies the cumbersome design and manufacturing aspects of traditional mold manufacturing.
By fine-tuning the printing parameters, such as layer thickness, scanning speed, and temperature control, the microstructure of the molded part can be further optimized.
This ensures its excellent performance in detailing.
In addition, the selection of high-performance printing materials, such as high-strength polymers and metal alloys, enhances the durability and mechanical strength of the mold parts.
It also meets the specific performance requirements of different application scenarios, laying a solid foundation for the subsequent processing and use of the mold.
This highly customized production method accelerates the development cycle of the mold.
It also improves the overall quality and market competitiveness of the mold.
In the subsequent processing stage of 3D printed mold parts, the mold manufacturing system demonstrates its excellent refinement processing capability.
It effectively addresses possible surface roughness unevenness, residual traces of the support structure, and other minor defects.
The system integrates a variety of technical means, such as high-precision CNC milling, polishing, and precision grinding.
It is also able to tailor the processing solution to the specific needs of the mold parts.
Through automated control and intelligent algorithm optimization, the mold manufacturing system can efficiently and accurately remove excess material.
At the same time, it can correct minor dimensional deviations caused by the printing process, ensuring that the dimensional accuracy of the mold parts meets the design requirements.
In addition, its flexible processing path planning capability enables the system to quickly respond to the processing needs of various complex mold parts.
This adaptability further improves the overall quality and production efficiency of the mold.
To further improve the efficiency and quality of the integrated manufacturing of mold manufacturing and 3D printing, an intelligent monitoring and feedback system can be introduced.
The system would enhance process control and optimize performance and help optimize the overall process.
And, this system can monitor various parameters in the processing process in real time, such as temperature, pressure, and speed.
It can also make dynamic adjustments to the processing process based on real-time data.
At the same time, through the integration of artificial intelligence algorithms, the processing data is analyzed in depth.
This enables the prediction and optimization of future processing, realizing the intelligence and precision of mold manufacturing.
Conclusion
In summary, the deep integration of mold manufacturing and 3D printing technology marks the manufacturing industry’s entry into a completely new stage of development.
It also heralds a future production model characterized by a high degree of customization, rapid response, and excellent performance.
This change not only improves the precision and efficiency of mold manufacturing and reduces production costs.
It also provides strong technical support for product innovation and faster time-to-market.
With the continuous progress of technology and the increasingly wide range of applications, we have reason to believe that the integration of mold manufacturing and 3D printing technology will show great potential.
This development could lead to significant advancements in various industries.
This integration will bring significant value to fields such as automotive, aerospace, and medical devices.
