In the process of prototype design, choosing the right material is crucial. Different materials have unique properties and advantages that cater to various design and testing needs. Selecting the appropriate material can enhance the prototype’s performance and influence manufacturing costs and processing difficulty. This article explores commonly used materials in prototype design and the reasons for their selection, helping readers understand how to choose the most suitable materials for their projects.
Plastics

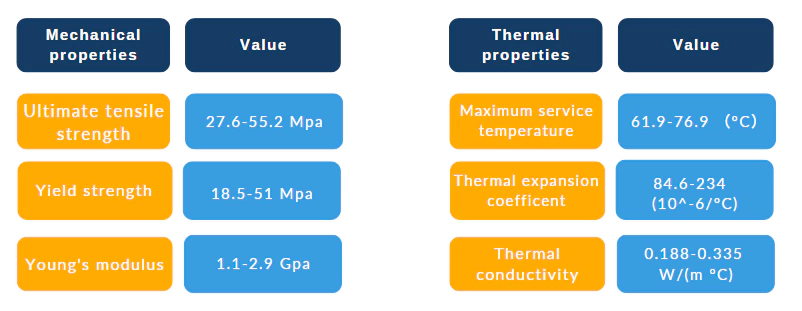

1. ABS (Acrylonitrile Butadiene Styrene)
ABS is a common material in prototype design due to its excellent processing performance, making it easy for injection molding and 3D printing. It is suitable for manufacturing prototypes with complex shapes. ABS has high strength and impact resistance, making it ideal for applications requiring durability and impact resistance. Additionally, ABS offers excellent surface treatment performance, making it easy to paint and plate and suitable for appearance verification.
2. PLA (Polylactic Acid)
PLA is an environmentally friendly material often used in prototype design due to its biodegradable properties, making it eco-friendly. PLA is easy to use in 3D printing, has a low melting point, and does not warp easily, making it ideal for beginners. Moreover, PLA does not release harmful gases during printing, is non-toxic, and odorless, and is suitable for indoor environments.

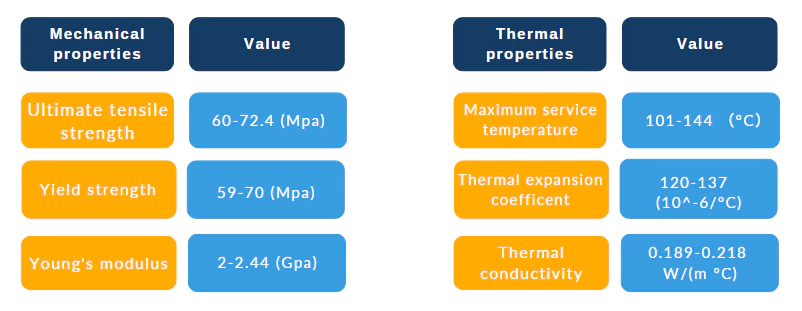

3. PC (Polycarbonate)
The polycarbonate is widely used in prototype design due to its high transparency, excellent heat resistance, and high strength. PC material is highly transparent and suitable for making prototypes requiring transparent housings, such as display covers or transparent parts. Its good heat resistance allows it to work stably in high-temperature environments, while its high strength and impact resistance make it suitable for prototypes needing to withstand physical impact and maintain structural stability.

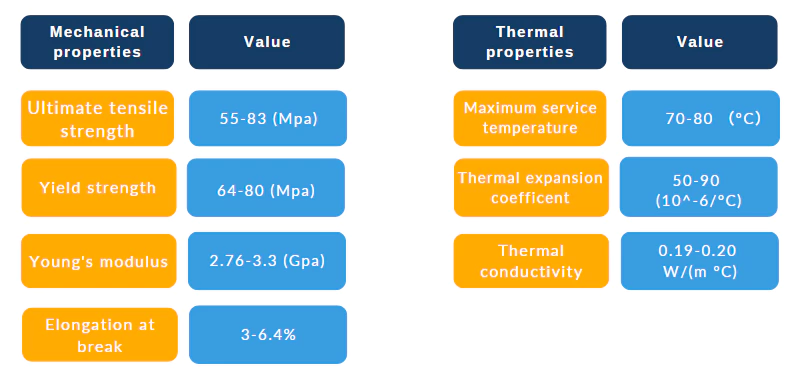

4. PMMA (Polymethyl Methacrylate)
PMMA, also known as acrylic, is widely used in prototype design due to its significant advantages: high transparency, suitable for prototypes requiring optical clarity; easy processing, allowing for cutting, polishing, and thermoforming to meet complex shape requirements; and excellent weather resistance for outdoor use, making it resistant to yellowing and aging, ideal for high-quality transparent parts.

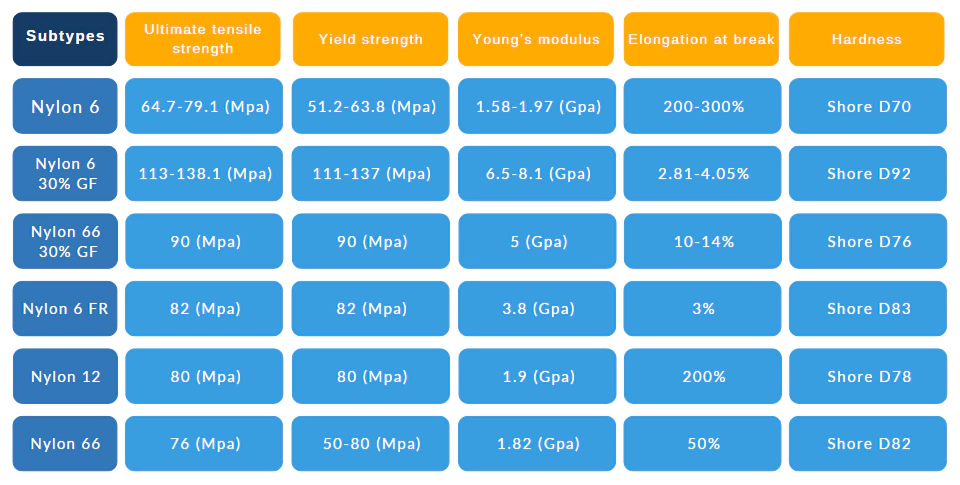

5. Nylon (Polyamide)
Nylon is advantageous in prototype design due to its high strength and toughness, suitable for prototypes requiring wear resistance and impact resistance. It also exhibits good chemical resistance, making it suitable for applications in various chemical environments. Additionally, nylon’s self-lubricating properties make it particularly suitable for manufacturing sliding parts, reducing frictional wear and extending service life.

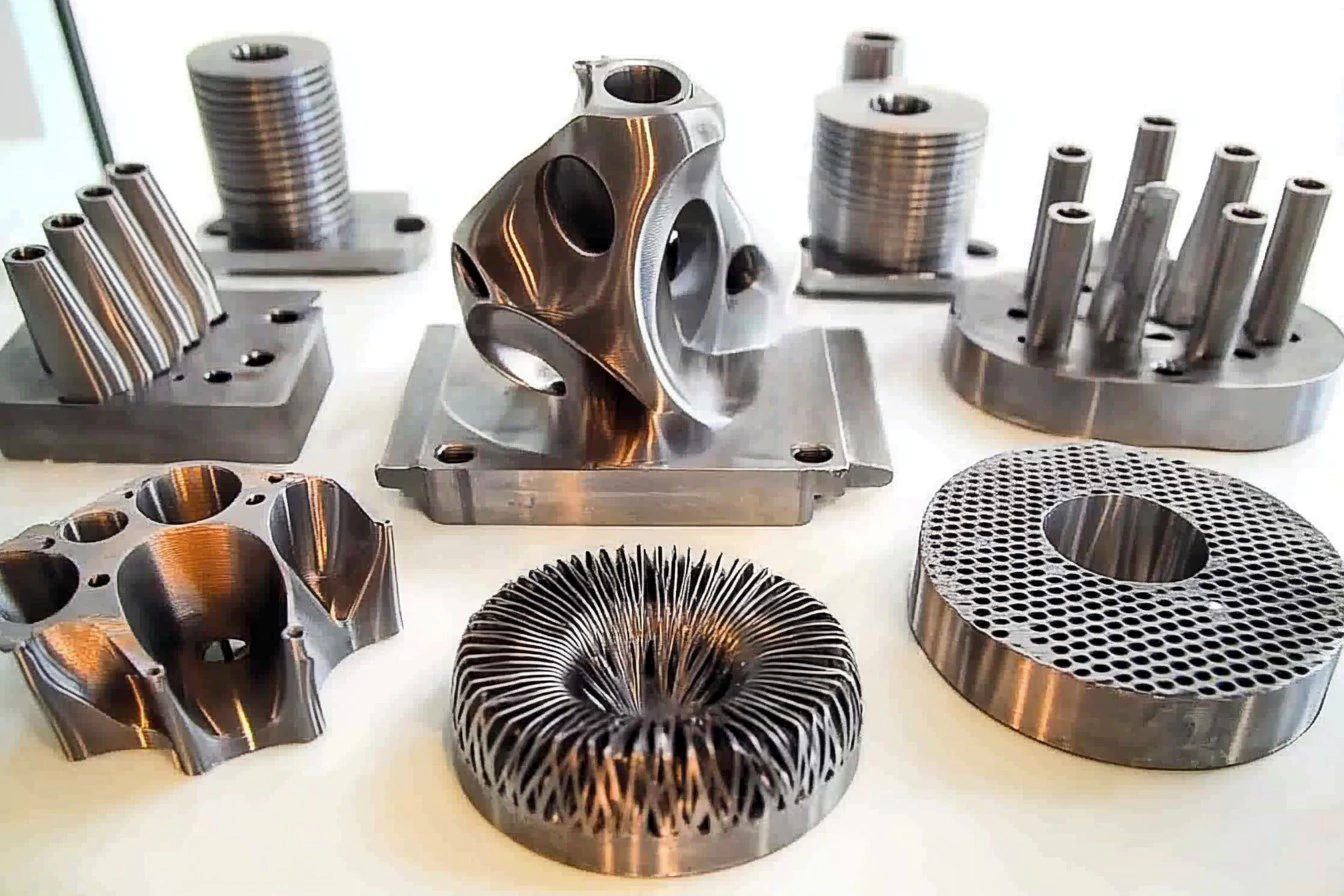

Metals
1. Aluminum Alloy
Aluminum alloy is popular in prototype design due to its lightweight and high strength. It offers good machinability, making it easy for cutting, drilling, and other mechanical processing. Its excellent thermal conductivity makes it suitable for prototypes requiring heat dissipation, widely used in aerospace and automotive fields.
2. Stainless Steel
Stainless steel is favored for its high strength and excellent corrosion resistance, suitable for prototypes needing long-term stability and durability. It is also easy to weld and finely process, meeting the requirements for complex structures and high-end appearances in applications like medical and chemical equipment.
3. Copper Alloy
Copper alloy, with its excellent electrical and thermal conductivity, is suitable for high-efficiency electronic devices and applications requiring high heat dissipation. Its ease of processing makes it an ideal choice for complex structure prototypes, and its natural antibacterial properties make it popular in medical equipment.
4. Titanium Alloy
Known for its excellent strength and corrosion resistance, titanium alloy is an ideal choice for prototype design. Its high specific strength makes it perform well in lightweight applications, while its high-temperature resistance and biocompatibility make it suitable for complex engineering and medical equipment prototypes.
Composite Materials
1. Glass Fiber Reinforced Plastic (GFRP)
GFRP, made from glass fibers and plastic resin, has an excellent strength-to-weight ratio, suitable for prototypes requiring high strength and lightweight design. It also offers good corrosion resistance, suitable for long-term use in harsh environments. GFRP’s design flexibility and moldability make it suitable for complex shapes and large-scale production needs.
2. Carbon Fiber Reinforced Plastic (CFRP)
CFRP, composed of carbon fibers and resin (such as epoxy resin), has an extremely high strength-to-weight ratio, making it one of the lightest high-strength materials. It is suitable for prototypes with extremely high lightweight requirements. CFRP also exhibits excellent fatigue strength, suitable for long-term high-load prototypes, and offers good electrical conductivity, ideal for prototypes needing electrical performance, such as electronic device housings or structural components.
Prepreg
Prepreg is a composite material characterized by precise resin content control, suitable for prototypes requiring high precision and complex structures. Once cured, it offers excellent mechanical properties, suitable for applications demanding high strength and rigidity. Prepreg also offers good machinability, ideal for automated processing and mass production, enhancing prototype design efficiency.
Composite Ceramic Materials
Composite ceramic materials, typically composed of ceramic particles and a metal or plastic matrix, offer high-temperature stability and wear resistance, suitable for prototypes needing long-term use in high-temperature environments and wear-resistant applications. Their lightweight and high strength make them suitable for lightweight designs, and they also provide excellent chemical resistance for prototypes used in chemical environments.
Conclusion
The choice of materials directly impacts the performance, cost, and manufacturing difficulty of a prototype. During the prototype design process, materials should be selected based on specific needs. For example, plastic materials are suitable for low-cost, quick-forming prototypes, metal materials are ideal for high-strength and durable prototypes, and composite materials are perfect for high-performance and lightweight prototypes. Rational material selection will help improve the efficiency and success rate of prototype design.
What are the common materials used for prototyping?
Prototyping materials include plastics (e.g., ABS, PLA, nylon), metals (e.g., aluminum, steel), and composites, as well as resins for 3D printing and wood for traditional modeling.
Why are plastics like ABS and PLA widely used in prototyping?
Plastics like ABS and PLA are cost-effective, easy to shape, lightweight, and versatile, making them ideal for creating functional and aesthetic prototypes.
Why is aluminum a popular choice for prototyping?
Aluminum is lightweight, strong, corrosion-resistant, and easy to machine, making it a preferred material for functional prototypes and engineering validation.
What role do resins play in prototyping?
Resins are used in additive manufacturing (e.g., SLA or DLP 3D printing) to create detailed and precise prototypes with smooth finishes, suitable for visual and functional testing.
Are composite materials used in prototyping?
Yes, composite materials like carbon fiber and fiberglass are used for lightweight and strong prototypes, especially in automotive, aerospace, and sporting goods industries.
What factors influence the choice of prototyping material?
Factors include the prototype's purpose (visual, functional, or engineering validation), material properties, cost, and the manufacturing process.
Why is steel used in prototyping?
Steel is chosen for its strength, durability, and resistance to wear, making it suitable for prototypes requiring high mechanical performance or mold inserts.
How are wood and foam used in prototyping?
Wood and foam are used for low-cost, quick prototypes to test form and design. They are especially useful in early concept development stages.
Can flexible materials be used for prototyping?
Yes, materials like TPU or silicone are used for creating flexible prototypes, such as seals, gaskets, and wearable components, for testing elasticity and durability.
How do advancements in material technology benefit prototyping?
New materials, such as bio-based plastics, high-performance polymers, and advanced composites, offer improved properties, sustainability, and compatibility with modern prototyping techniques.
